Pre-assembled tension rod system
The following components make up a preassembled tension rod system.
- A solid end-threaded bar in diameters from M10 – M120
- Adjustable Clevis Forks that connect to the end of the bars

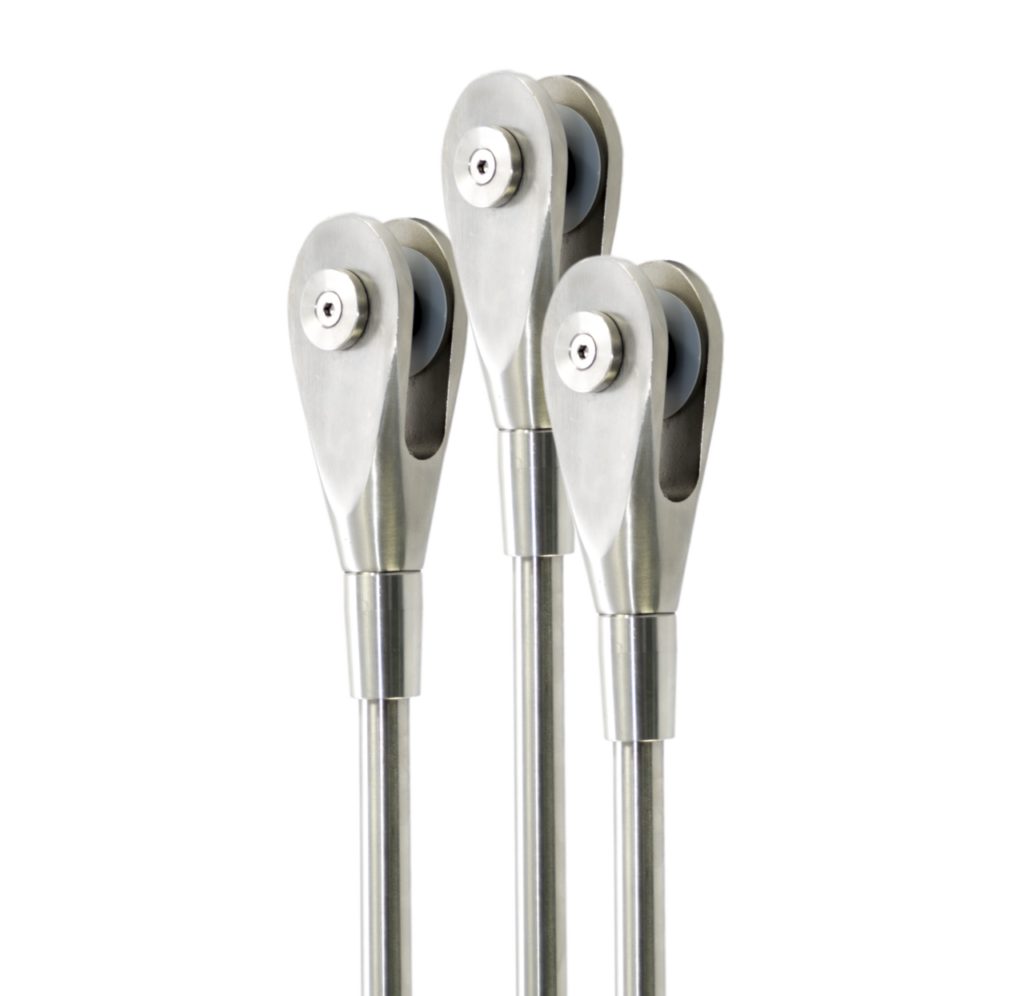

- Pin Sets to connect the adjustable clevis forks to steelwork
- Lock Covers to cover bar threads, and lock against the forks and turnbuckles
- Turnbuckles with lock covers, which enable tensioning, extra adjustment and allows for bars to be connected for longer assemblies
- European Technical Assessment ETA-21/0053
- Download tension structures data sheet
The carbon steel system can include options for corrosion protection e.g. galvanised, paint, powder-coating.
The stainless steel systems can include for various polished surface finishes e.g Bright Polished Finish to Satin Polished Finish.
Roof truss applications

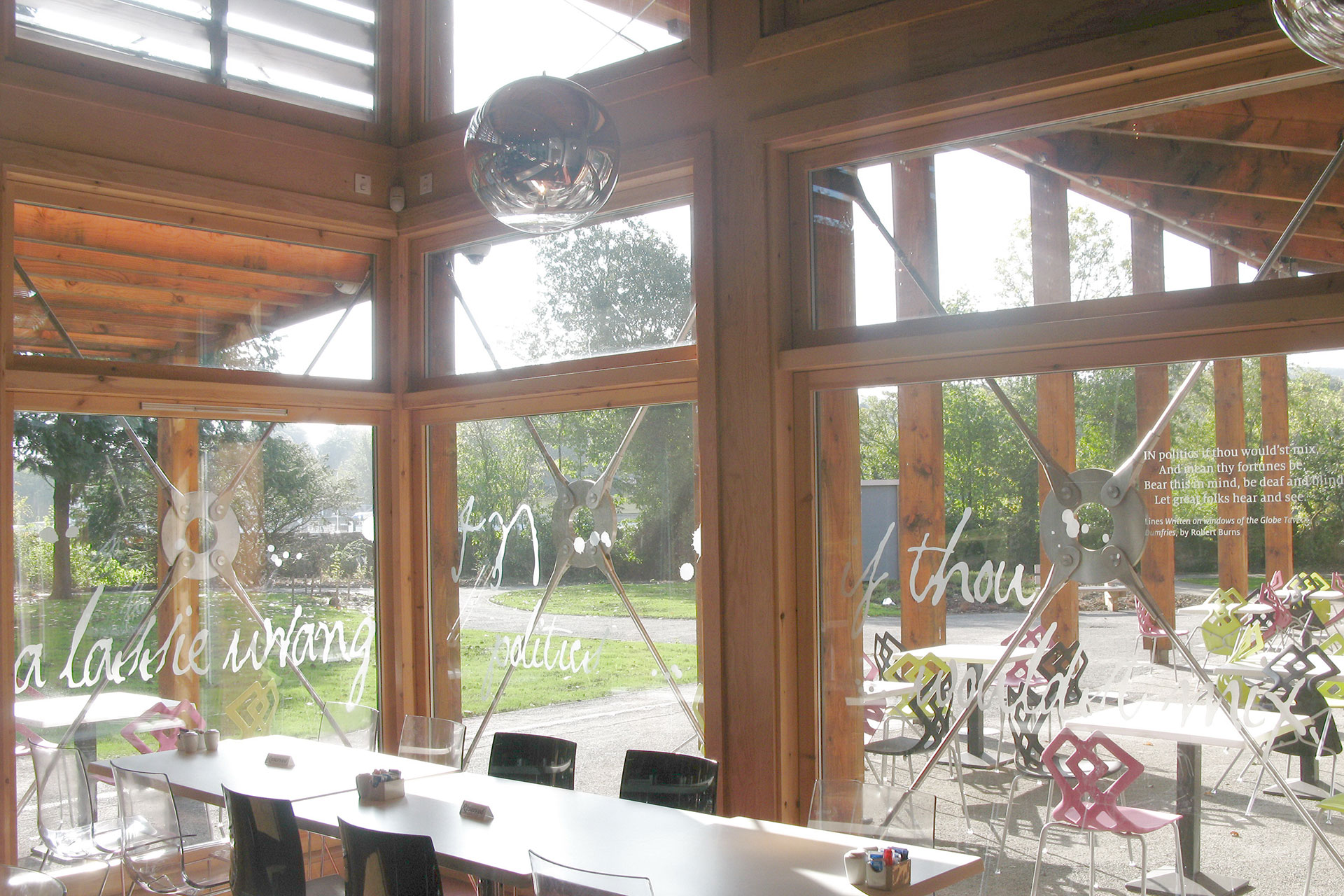

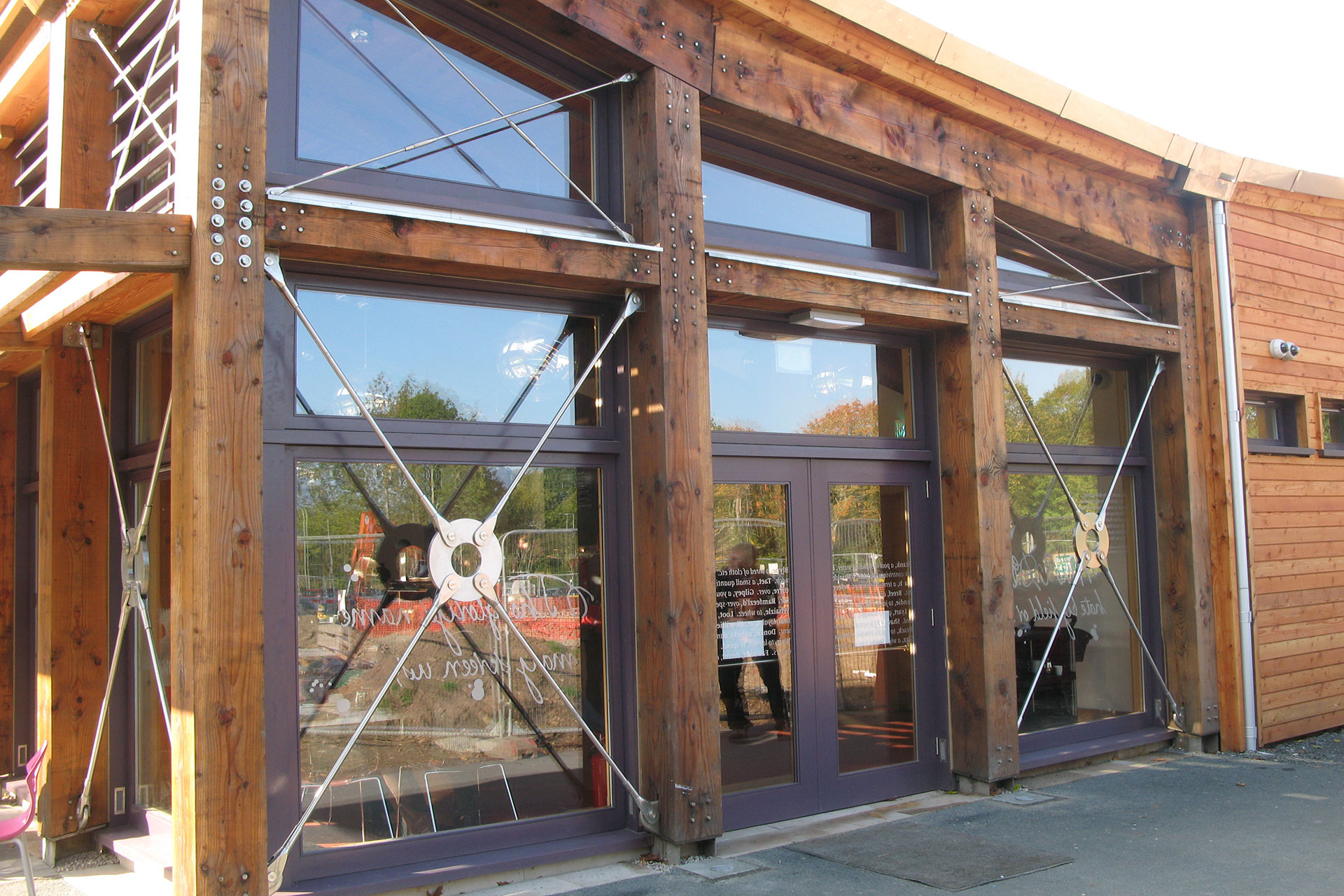

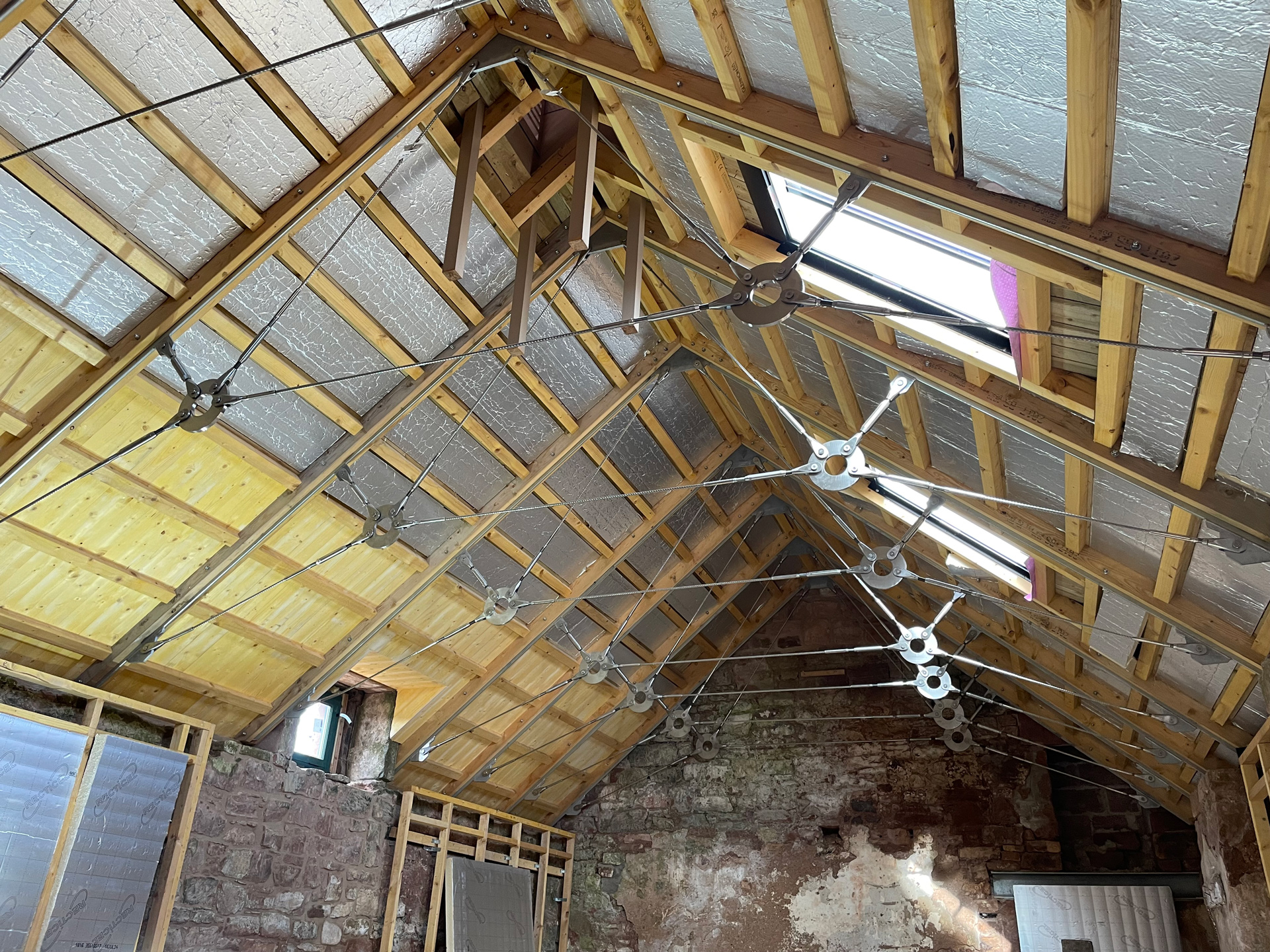

Cross bracing applications
For requirements where rods may be used in roof truss applications, components such as 3-hole bracing discs, and hanger-turnbuckles are available.

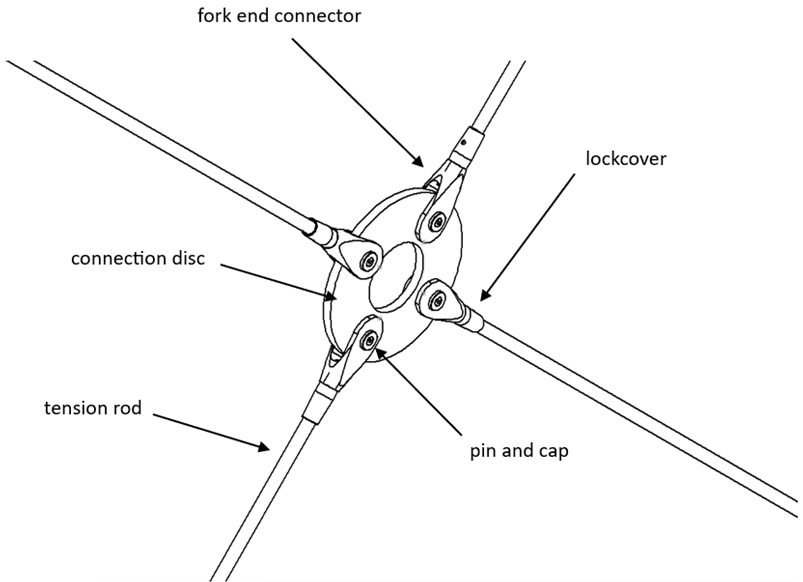

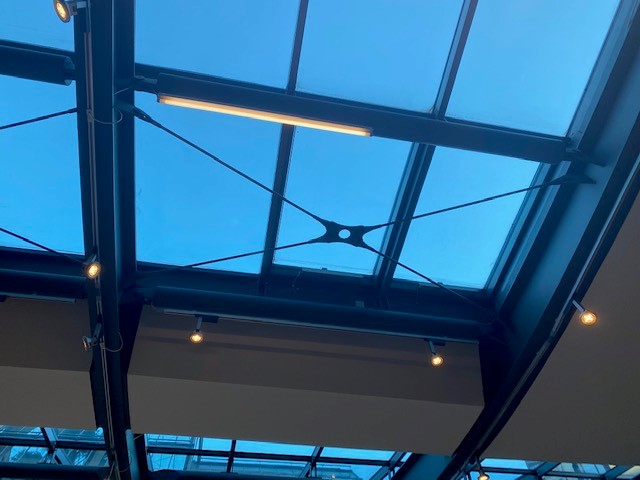

When cross-bracing tension rods are situated in plane, components such as, cross-couplers and bracing discs are available.
Adjustable Compression Struts
- Uses the standard cast fork and pin connection
- Carbon Steel & Stainless Steel options
- Standard CHS sizes from 1.33” (33.7mm) to 12.75” (323.9mm) tube
diameter - Custom sizes available upon request
- Tension capacity matching grade 550 bar of the same thread size
- Ideal for double loading applications
European Technical Assessment ETA-21/0053
Download compression struts data sheet
SC460 Adjustable Architectural Cable Systems
- Range of cable diameters – 3mm to 28 mm
- Uses the standard cast fork and pin connection
- Systems available offer equal adjustment at either end, or single adjustment at one end
- Rotation of the threaded stud or tensioner turnbuckle lengthens or shortens the cable (depending on the system chosen)
- Download stainless steel cables data sheet

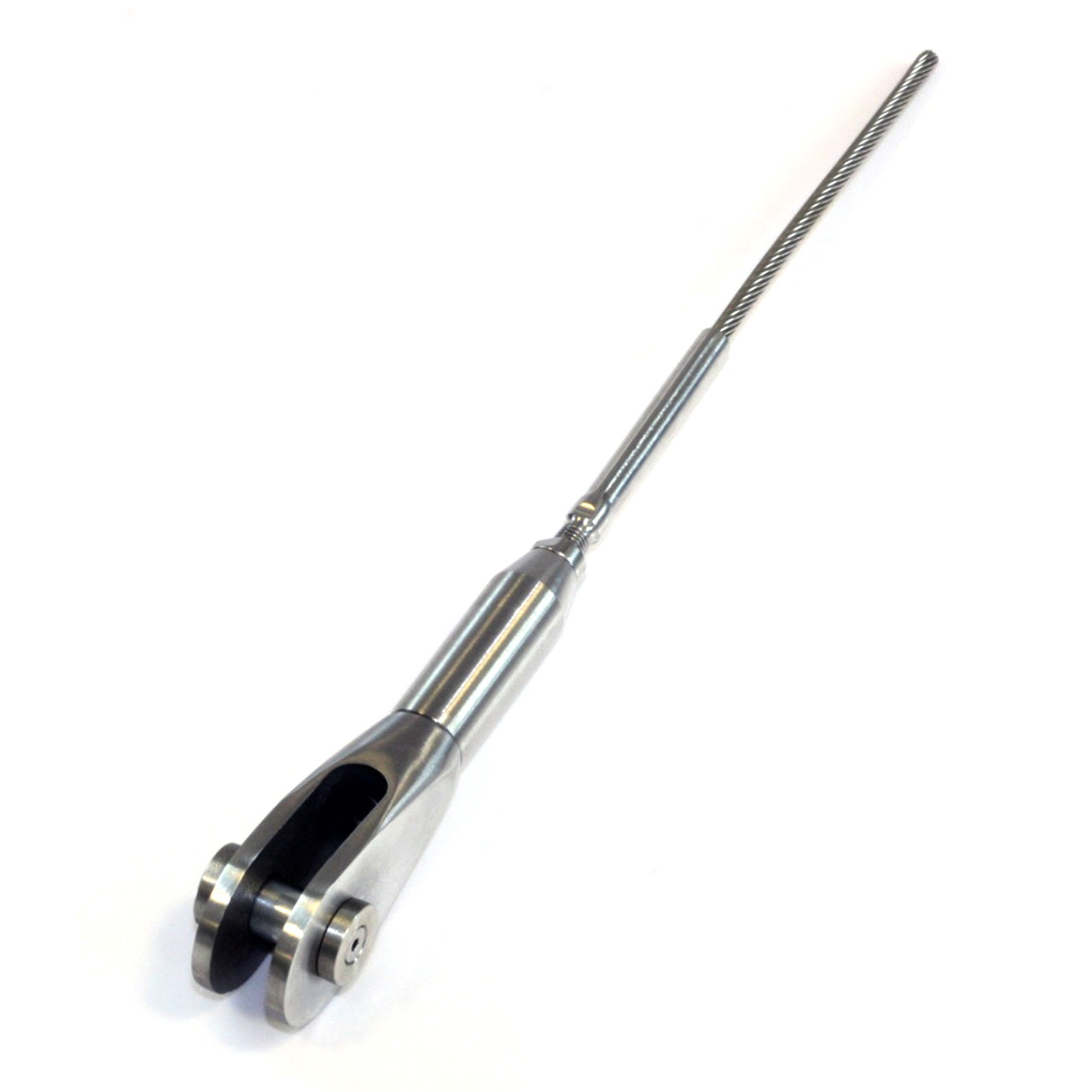

Stainless Cables
- Range of diameters – 3mm to 28mm diameter
- Swaged connectors to standard Macalloy metric forks
- Standard Arrangement – adjustment within fork
- Swaged Tensioner – greater adjustment within tensioner
- Download stainless steel cables data sheet
Additional components for the tension system
Fully compatible with the Macalloy tension rod system, our additional components create the perfect solution for your project.

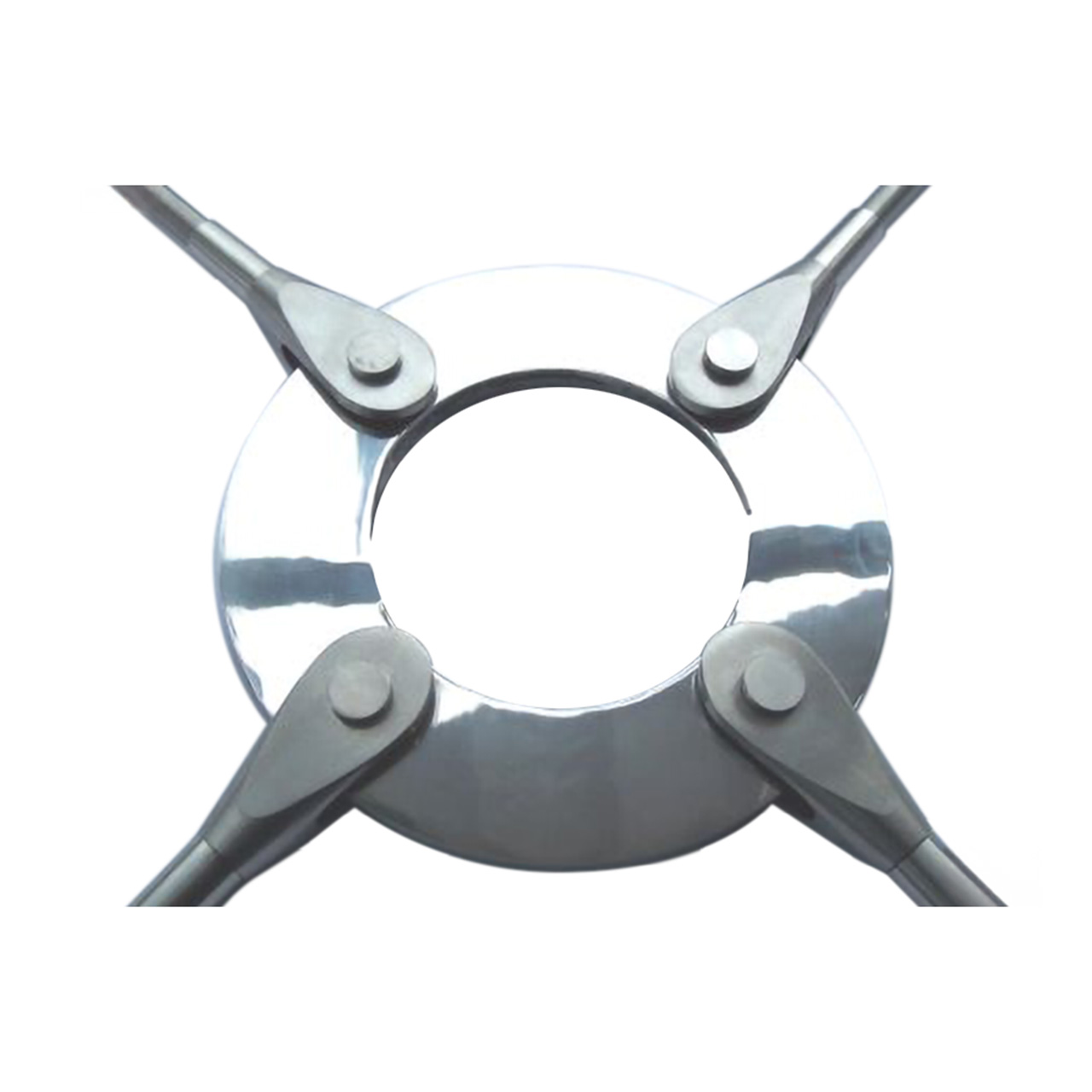

Bracing Discs
- European Technical Assessment ETA-21/0053
- Compatible with 460/520/550 grade tension rod systems
- Offered in both carbon steel and stainless steel materials
- Standard discs accommodate angles ranging from 40° to 140°
- Standard discs are available with either ‘3 hole’ or ‘4 hole’ configurations, with additional options available upon request
- Non-standard discs can be provided for angles that fall outside the standard range
- Custom profiles and shapes are available upon request
- Download bracing discs data sheet

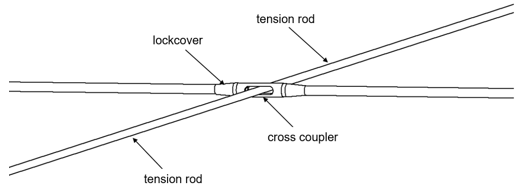

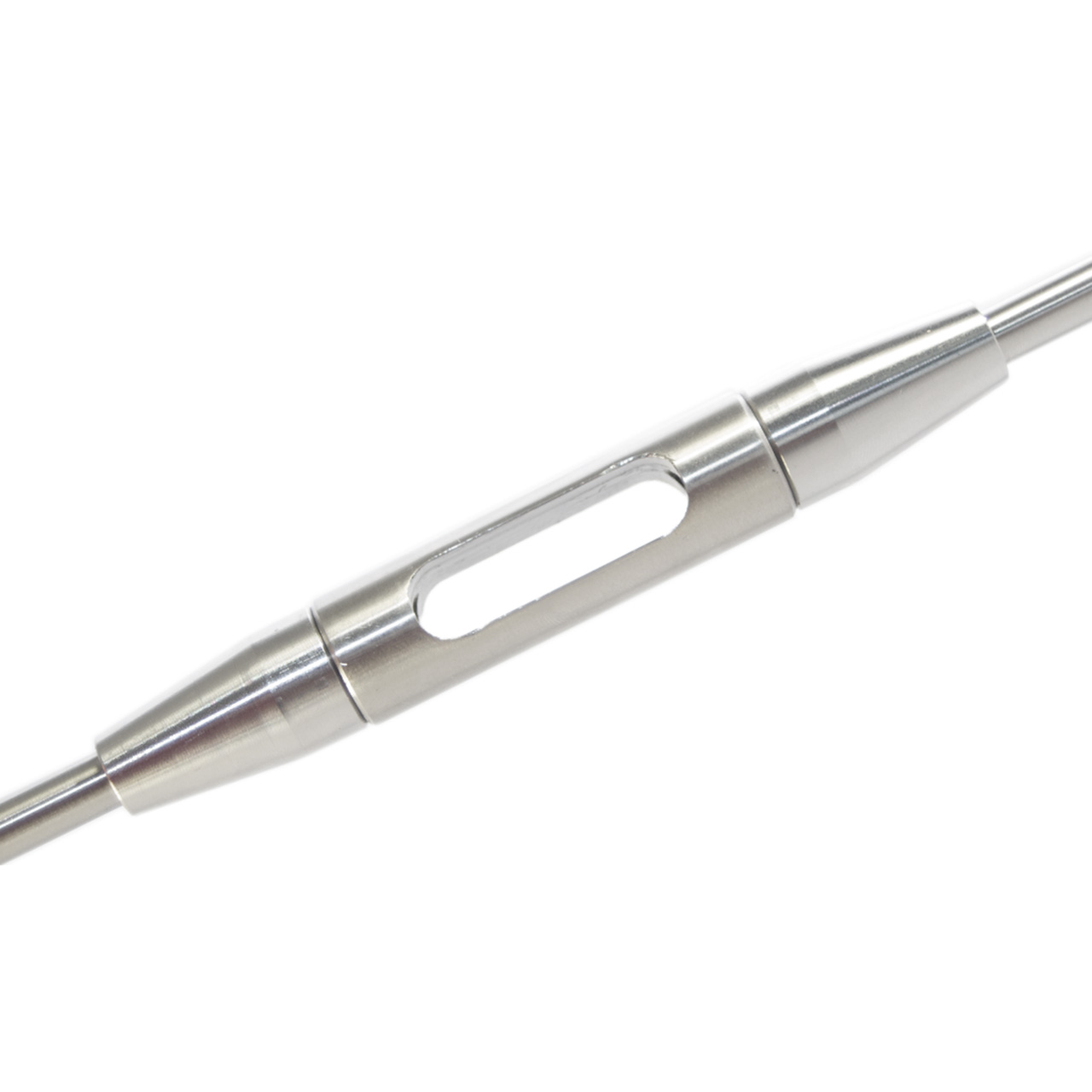

Cross Couplers
- European Technical Assessment ETA-21/0053
- Compatible with 460/520/550 grade tension rod systems
- Offered in both carbon steel and stainless steel materials
- Standard cross couplers accommodate angles ranging from 40° to 140°
- Non-standard cross couplers can be provided for angles that fall outside the standard range
- Adjustable cross couplers available upon request
- Download cross coupler data sheet
Requesting your quote is quick and hassle-free!
Simply choose the right configuration for your project;
- Length of assembly – even if it’s an estimated length
- The material required – Stainless Steel or Carbon Steel
- Grade of material – 460, 520 or 550
- Diameter
- Do you need a turnbuckle, disc, hanger-turnbuckle, cross coupler?
- Then simply request a quote.
Our team will review your requirements and get back to you within 24 hours with a tailored solution. If you are unsure about the exact details, our sales team will support you through the quotation process.
